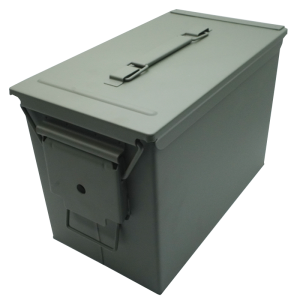

Metal Box

Product details: metal storage box

Metal storage bins are a storage tool widely used in industrial, domestic and commercial scenarios, specifically designed to store items that cannot be squeezed or are vulnerable to damage. Characterized by its strong structure and good durability, the metal box plays an important role in logistics transportation, equipment protection, and item storage. Product design takes into account lightweight, compression resistance and corrosion resistance to fully meet the needs of multiple scenarios.

Production Technology And Process

1. Material selection and preparation

Material: Steel plate

Material selection of high-quality cold-rolled steel plate, with high hardness and ductility, while easy to process.

The steel plate must meet the relevant standards (such as GB/T 709 or ASTM A568) and have a flat surface without cracks or corrosion.

2. Processing process flow

Housing part

Laser cutting: High-precision laser cutting equipment is used to cut the steel plate, and the plane pattern of the box is made, including the bottom, side and reinforcement structural parts.

Laser cutting has the characteristics of smooth incision and high precision, without secondary grinding, and the error is controlled within ± 0.2mm.

Bend: With the help of CNC bending machine (CNC bending machine), the cut steel plate is bent several times to form the three-dimensional shape of the box.

The bending Angle should be strictly controlled to ensure that the edges of the box after forming are straight and the joint surface is seamless.

Welding:Use gas shielded welding (MIG welding) or laser welding technology to firmly weld the bent parts of the box to ensure structural strength.

After welding, the weld is polished and polished to ensure that the surface of the box is smooth.

Lid section

Stamping:The main body of the box cover is produced by stamping the steel plate with a hydraulic press.

The mold needs to be designed precisely to ensure that the edge of the lid has a certain tightness to match the box.

Punching and reinforcement:The stiffener design is added to the surface of the lid to improve the compression performance, and the hinge hole or handle hole is punched if necessary.

Surface treatment: anodizing

–After forming the box and the box cover are treated, a layer of corrosion resistant oxide film is formed on the surface of the steel plate by anodic oxidation process.Color (such as black, silver, etc.) can be added in the treatment process to enhance the beauty of the product and anti-rust performance. The oxide layer thickness is controlled at 10-15 μm.

Quality Inspection

Size detection:  Use the coordinate measuring instrument (CMM) to measure the key dimensions of the box and the box cover to ensure that there is no error between the two.

Tightness test:  Check the tightness between the box and the lid to ensure that there is no obvious gap or water leakage.

Surface inspection: Visual and equipment inspection of the product to ensure uniform surface treatment, no scratches or oxidation spots.

Product Specifications

Parameter	Details
External Dimensions	60 cm × 30 cm × 40 cm
Material	Cold-rolled steel plate, thickness 1.5 mm
Weight	8-kg
Surface Finish	Anodized (Silver/Black/Grey options)
Load Capacity	Maximum 80 kg (static load)
Structure	Two components: lid and body
Sealing Performance	Dustproof and splash-resistant
Durability	Lifespan over 8 years under normal use

Performance Requirements

High Compression Resistance:

The box must protect its contents from heavy loads during storage and transportation.  The structure should remain intact without deformation under pressure.

Corrosion Resistance:

The anodized finish ensures long-term performance in humid or corrosive environments, maintaining both appearance and functionality.

Dimensional Stability:

The lid and body must fit seamlessly, providing a secure closure to prevent dust or moisture entry.

Aesthetic Appeal:

The anodized surface offers a smooth and professional finish, suitable for both functional and decorative applications.

Lightweight and Portability:

Optimized material thickness balances weight and strength, making the box easy to handle while maintaining its structural integrity.

Advantages Of  The Product

Precision Fabrication: Advanced processes such as laser cutting and CNC bending ensure tight tolerances and consistent quality.

Enhanced Durability: Anodized steel offers superior corrosion resistance and surface hardness.

Versatile Design: Suitable for diverse applications due to its robust build and customizable features.

User-friendly: Lightweight design with features like ergonomic handles (optional) for convenient handling and transportation.

This metal storage box is a reliable, durable, and visually appealing solution for safely storing non-compressible items across various environments.
